Technical parameter

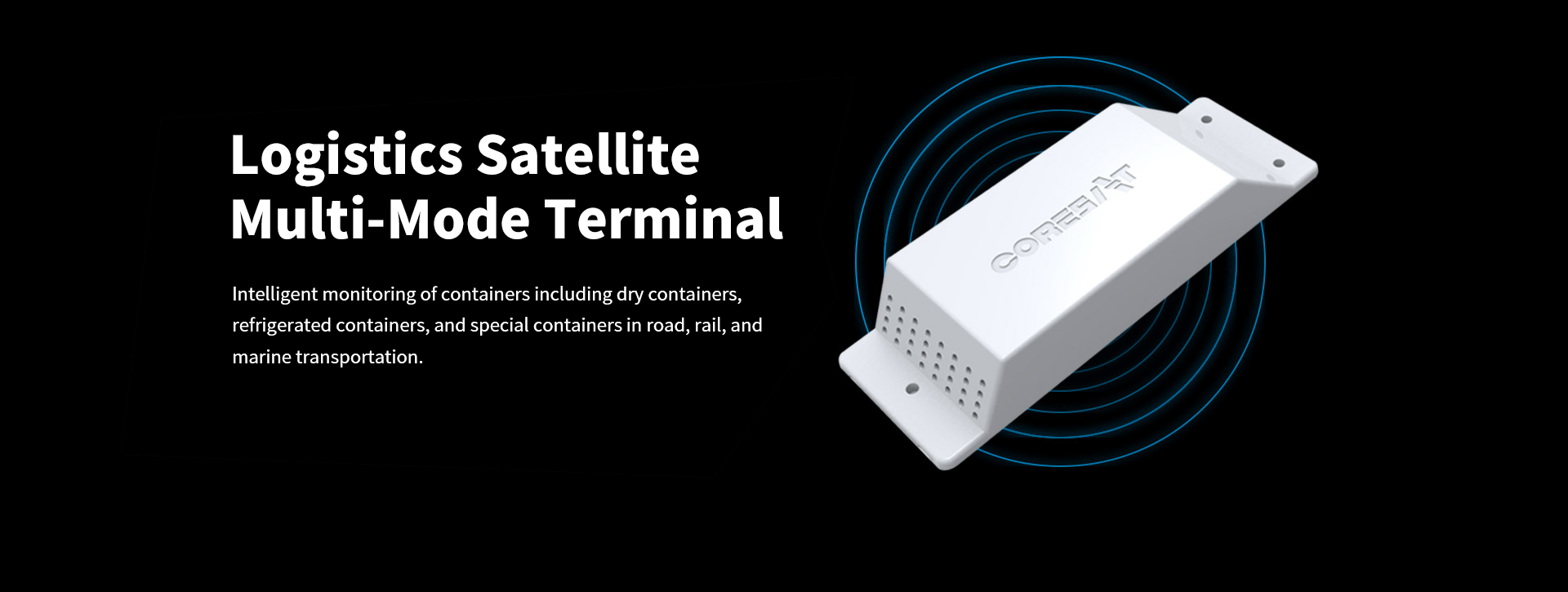

Logistics satellite multi-mode terminal
⬇
communication mode
"Space-based + ground-based" dual network communication mode: Xingyun satellite \ NB-IoT
communication mode
Dual mode automatic switching
The amount of data at a time
≤200（Bytes）
positional accuracy
2-10 meters
Power supply mode
Internal battery
Power dissipation
The whole machine emission state <5W; Standby power consumption <10mW
Data transmission delay
NB-IoT transmission delay depends on local network coverage;
Terminal size
205mm*68mm*34mm
Storage
No network local data store, storage capacity 2000 points
Operating temperature
-40 ºC ~ +75 ºC
Installation site
Container vent
Structure design
IP67 waterproof
Ttexture
ABS
Sensor
Optional temperature, opening and closing doors, empty heavy load, acceleration and other sensors

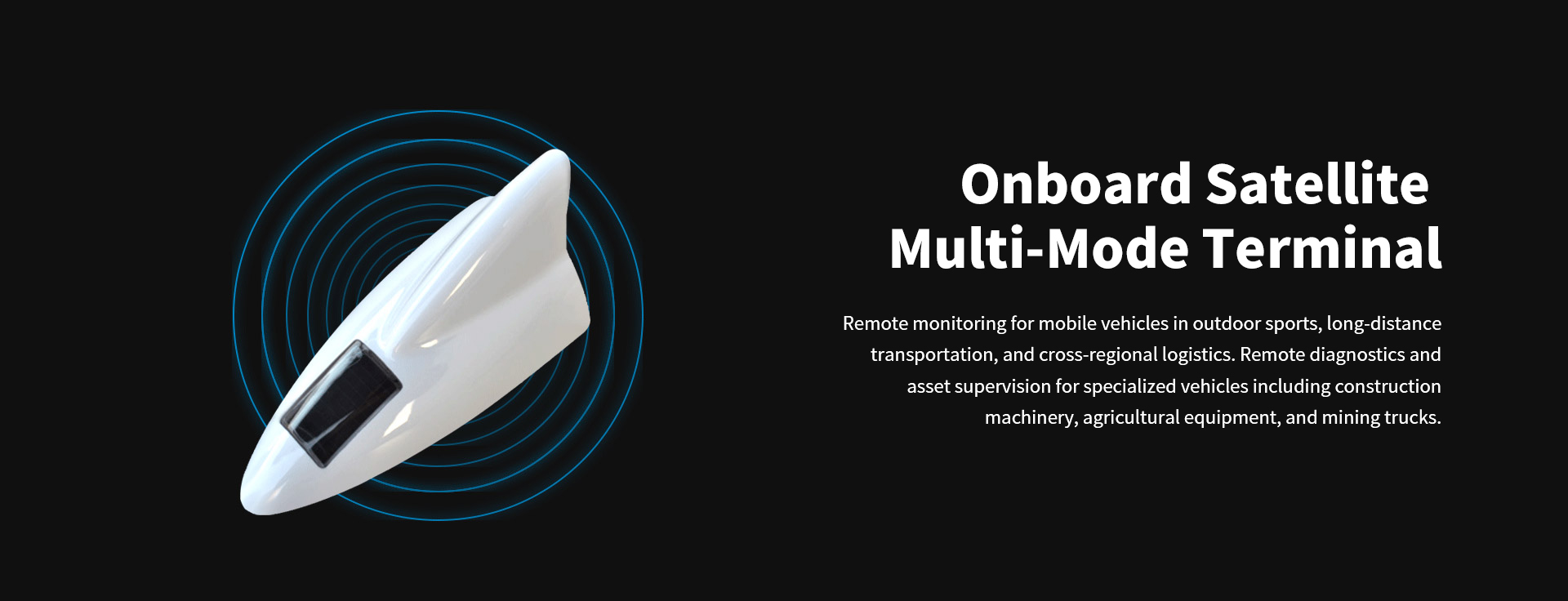

Vehicle satellite multi-mode terminal
⬇
Communication mode
"Space-based + ground-based" dual network communication mode: Xingyun satellite \ NB-IoT
Communication mode
Dual mode automatic switching
The amount of data at a time
≤200（Bytes）
Positional accuracy
2-10米
Power supply mode
Solar power + built-in battery
Power dissipation
The whole machine emission state <5W; Standby power consumption <10mW
Data transmission delay
The data transmission delay of Xingyun satellite is <10min
Terminal size
170mm*84mm*85mm
External interface
Bluetooth, CAN
Storage
No network local data store, storage capacity 2000 points
Operating temperature
-40 ºC ~ +85 ºC
Installation site
Roof
Structure design
IP65 waterproof
Texture
ABS
Sensor
Built-in gyroscope and compass

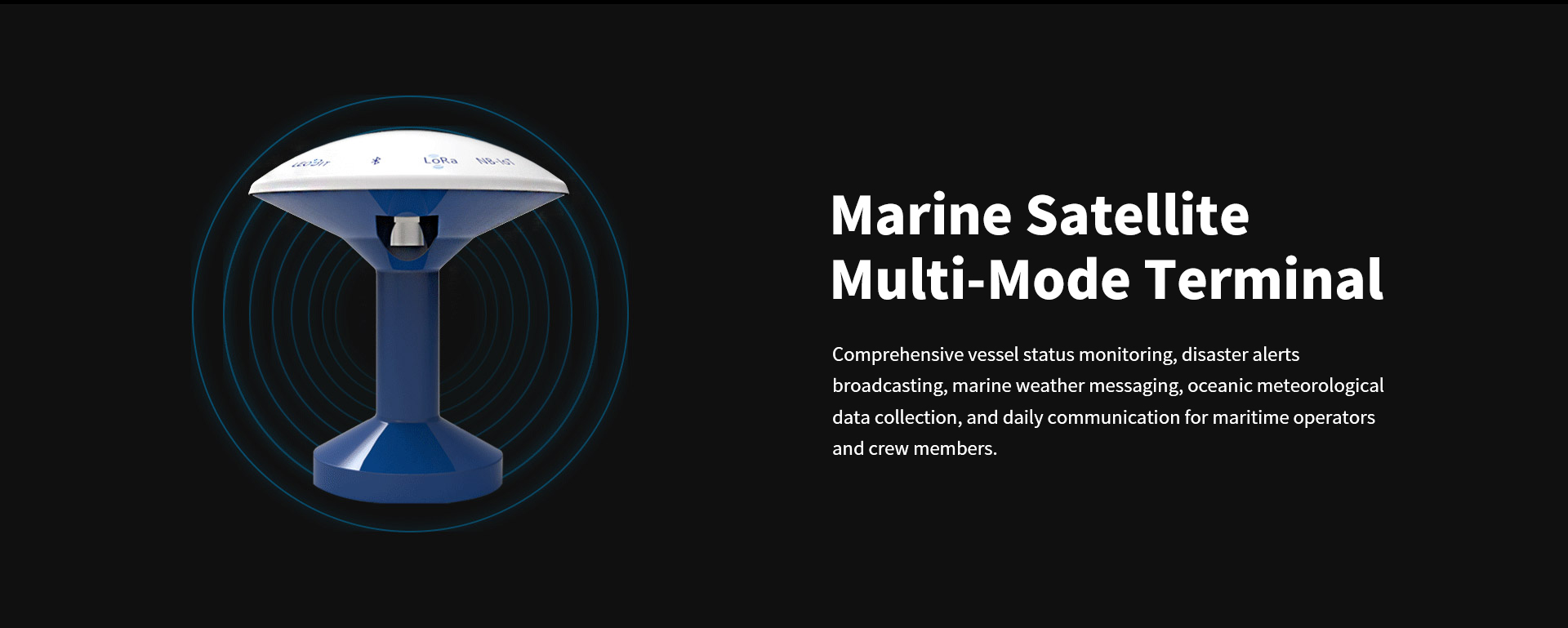

Shipborne satellite multimode terminal
⬇
communication mode
Cloud satellite, LoRa, Bluetooth
The amount of data at a time
≤200（Bytes）
positional accuracy
2-10 meters
Power supply mode
External power supply \ Built-in battery power supply
Power dissipation
The whole machine emission state <5W; Standby power consumption <10mW
Data transmission delay
The data transmission delay of Xingyun satellite is <10min
Terminal size
φ145mm*165mm
LoRa communication
LoRa communication greater than 5Km
Storage
No network local data store, storage capacity 2000 points
Connector
RS232, Bluetooth
Operating temperature
-40 ºC ~ +85 ºC
Installation site
Sucker adsorption
Structure design
IP67 dust and water proof, salt spray corrosion proof
Texture
ABS
Sensor
Built-in gyroscope and compass

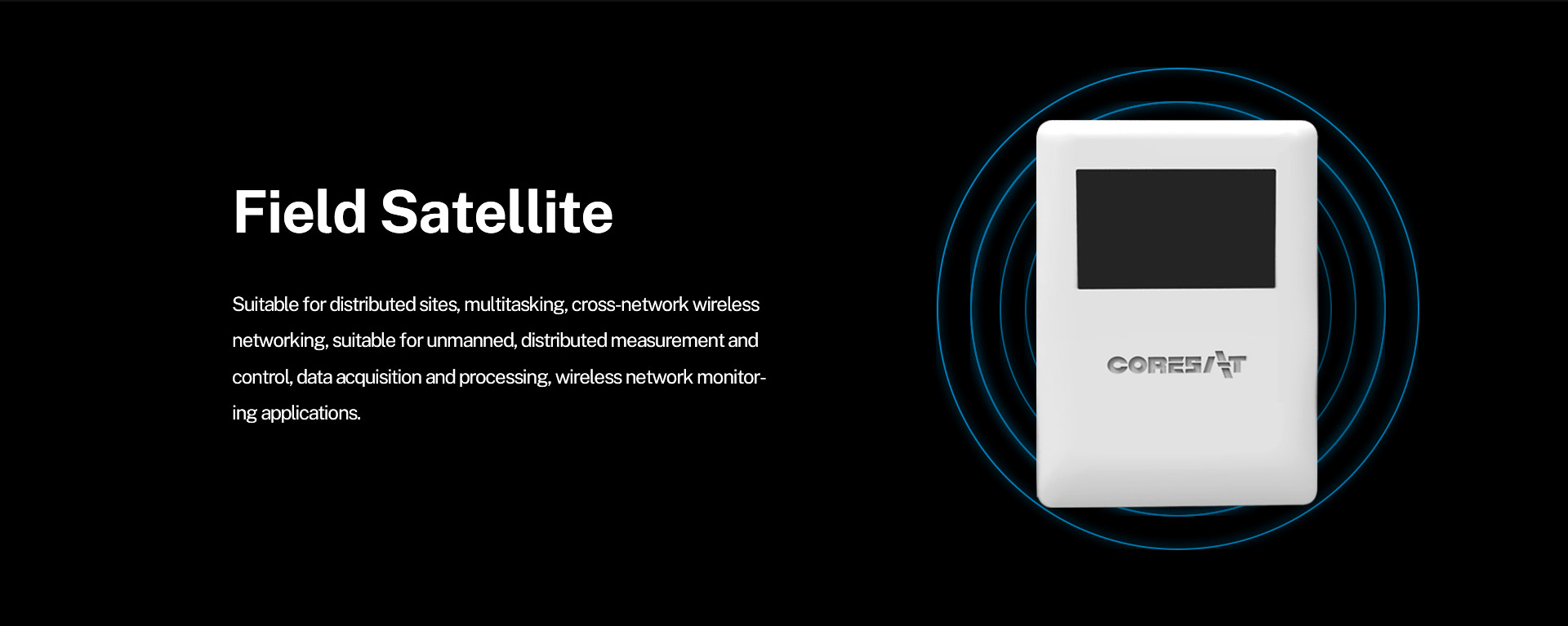

Field satellite multimode terminal
⬇
Communication mode
"Space-based + ground-based" dual network communication mode: Xingyun satellite \ NB-IoT\ GSM
Communication mode
Dual mode automatic switching
The amount of data at a time
≤200（Bytes）
Positional accuracy
2-10米
Power supply mode
High capacity lithium battery
Power dissipation
The whole machine emission state <5W; Standby power consumption <10mW
Data transmission delay
The data transmission delay of Xingyun satellite is <10min
Terminal size
130mm*70mm*18mm
Port
RS232
Operating temperature
-40 ºC ~ +85 ºC
Installation site
Install through the base thread
Structural design
IP67
Texture
ABS
OTA function
Support
Sensor
Tilt Angle monitoring, collision acceleration sensor
